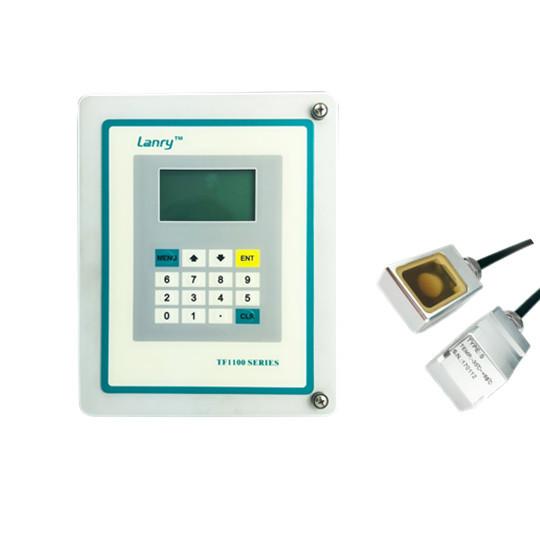

Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory

  • 1
  • 2

Brand Name : Lanry

Model Number : TF1100-EC

Certification : ISO9000, CE, CPA,CMC

Place of Origin : China

MOQ : 1PC

Price : Negotiable

Payment Terms : T/T

Supply Ability : 1000pcs/month

Delivery Time : 7-10 working days

Packaging Details : carton packing 44X33X22cm 1PC/carton

Measure principle : ultrasonic transit-time difference correlation principle

Veolicty range : 0.01 to 12m/s

Accuracy : Reading+/- 1%

IP class : IP68

Pipe size : DN20-6000

Temperature : -35-200°C

Transducer : Clamp-on; non-invasive

Output : datalogger/4-20mA /OCT /RS485/RS232/GPRS

Dispaly : Four lines

Transducer material : Aluminum

Contact Now

Product Description
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory

TF1100-EC Popular Sales Ultrasonic BTU Flow Meter works on the transit-time method. The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Three pairs of transducers are sufficient to cover the most common pipe diameter ranges. In addition, its optional thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility.
This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.
Features
1. Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.
2. Wide liquid temperature range: -35℃~200℃.
3. Data logger function for this Diesel fuel flow meter.
4. Thermal energy measurement capability can be optional.
5. For commonly used pipe materials and diameters from 20mm to over 6.0m.

6. Wide bi-directional flow range of 0.01 m/s to 12 m/s..

Application

General
● Service and maintenance

● Replacement of defective devices

● Support of commissioning process and installation

● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves

● Energy efficiency audits

Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
Petrochemical industry
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Refrigeration and air conditioning systems
Food , beverage and pharmaceutical industry
Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
Metallurgy and mining applications
Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.

Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory

Specifications :Transmitter

Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory

Specifications :Transducer

Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory

ultrasonic flowmeter Diamensional Sketches:

Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory

S 48(h)*28(w)*28(d)mm
M 60(h)*34(w)*32(d)mm
L 80(h)*40(w)*42(d)mm

Factory Equipment
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Customer Visiting
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Previous Exhibition
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Certificate
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Packing & Delivery

Packing

Popular Sales Ultrasonic BTU Flow Meter

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory
Data Logger 4-20ma Clamp On Type Ultrasonic Flow Meter For Beverage Factory

Delivery

Popular Sales Ultrasonic BTU Flow Meter

Standard meter: 3-7 days

Special meter: pls contact us

Express, by air, by sea can be optional.
